Crydom 面板式安裝的交流輸出固態繼電器和接觸器具有單相、雙相及 3 相配置，電壓為 24 至 660 VAC 時，額定電流為 5 至 150 安培。
交流固態繼電器在設計上能夠安裝至金屬板或散熱片，以便消耗生成的熱量。各交流輸出固態繼電器說明書中提供有散熱片選型圖表。
交流輸出接觸器通常用于3相加熱器和電機的電源開關，但不僅限于這些類型的應用。我們的固態接觸器還提供額定功率高達 25 HP 的電機（480 VAC 電壓下）。
Crydom 交流面板式安裝固態繼電器和接觸器，是機電開關設備的絕佳替代品，適用于要求頻繁開關和較長使用壽命的應用。
| 零件編號 | 控制電壓 | 最大負載電流 | 線電壓范圍 | 安裝 |
|---|---|---|---|---|

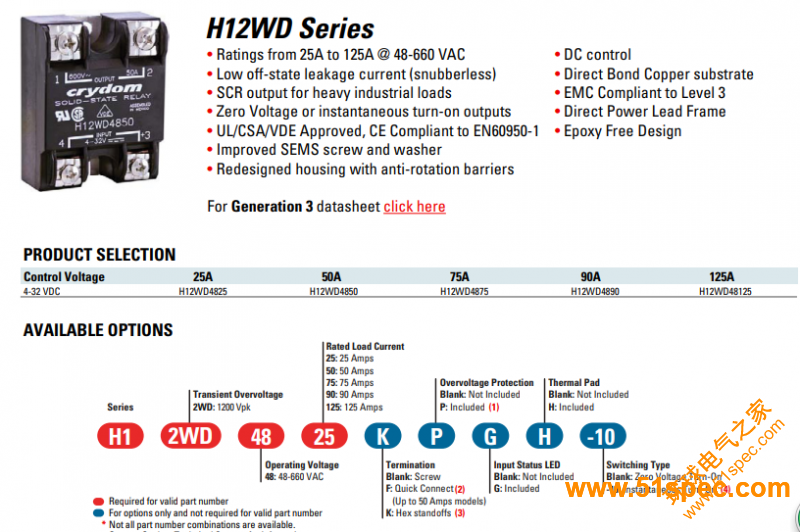

| H12WD4825 | 4-32 VDC | 25 A | 48-660 VAC | Panel |
| H12WD4825-10 | 4-32 VDC | 25 A | 48-660 VAC | Panel |
| H12WD4850 | 4-32 VDC | 50 A | 48-660 VAC | Panel |
| H12WD4850-10 | 4-32 VDC | 50 A | 48-660 VAC | Panel |
| H12WD4875 | 4-32 VDC | 75 A | 48-660 VAC | Panel |
| H12WD4875-10 | 4-32 VDC | 75 A | 48-660 VAC | Panel |
| H12WD4890 | 4-32 VDC | 90 A | 48-660 VAC | Panel |
| H12WD4890-10 | 4-32 VDC | 90 A | 48-660 VAC | Panel |
| H16WD6025 | 4-32 VDC | 25 A | 48-690 VAC | Panel |
| H16WD6025-10 | 4-32 VDC | 25 A | 48-690 VAC | Panel |
| H16WD6025G | 4-32 VDC | 25 A | 48-690 VAC | Panel |
| H16WD6025G-10 | 4-32 VDC | 25 A | 48-690 VAC | Panel |
| H16WD6050 | 4-32 VDC | 50 A | 48-690 VAC | Panel |
| H16WD6050-10 | 4-32 VDC | 50 A | 48-690 VAC | Panel |
| H16WD6050G | 4-32 VDC | 50 A | 48-690 VAC | Panel |
| H16WD6050G-10 | 4-32 VDC | 50 A | 48-690 VAC | Panel |
| H16WD6075 | 4-32 VDC | 75 A | 48-690 VAC | Panel |
| H16WD6075-10 | 4-32 VDC | 75 A | 48-690 VAC | Panel |
| H16WD6075G | 4-32 VDC | 75 A | 48-690 VAC | Panel |
| H16WD6075G-10 | 4-32 VDC | 75 A | 48-690 VAC | Panel |
| H16WD6090 | 4-32 VDC | 90 A | 48-690 VAC | Panel |
| H16WD6090-10 | 4-32 VDC | 90 A | 48-690 VAC | Panel |
| H16WD6090G | 4-32 VDC | 90 A | 48-690 VAC | Panel |
| H16WD6090G-10 | 4-32 VDC | 90 A | 48-690 VAC | Panel |
| H12D48125 | 4-32 VDC | 125 A | 48-530 VAC | Panel |
| H12D48125-10 | 4-32 VDC | 125 A | 48-530 VAC | Panel |
| H12D4825 | 4-32 VDC | 25 A | 48-530 VAC | Panel |
| H12D4825-10 | 4-32 VDC | 25 A | 48-530 VAC | Panel |
| H12D4850 | 4-32 VDC | 50 A | 48-530 VAC | Panel |
| H12D4850-10 | 4-32 VDC | 50 A | 48-530 VAC | Panel |
| H12D4875 | 4-32 VDC | 75 A | 48-530 VAC | Panel |
| H12D4875-10 | 4-32 VDC | 75 A | 48-530 VAC | Panel |
| H12D4890 | 4-32 VDC | 90 A | 48-530 VAC | Panel |
| H12D4890-10 | 4-32 VDC | 90 A | 48-530 VAC | Panel |
| H12WD48125 | 4-32 VDC | 125 A | 48-660 VAC | Panel |
| H12WD48125-10 | 4-32 VDC | 125 A | 48-660 VAC | Panel |
| 安裝方式 | 面板安裝 |
|---|---|
| 觸點型式 | 常開 NO |
| 控制輸入 | 4-32 VDC |
| 負載電壓 | 48-660 VAC |
| 負載電流 | 125 A |
| 觸發方式 | 過零觸發 |
| 導通壓降 | 1 V |
| 導通時間 | 50 ms |
| 關斷時間 | 50 ms |
| 斷態漏電流 | 1 mA |
| 熱阻系數 | 0.45 °C/W |
| 絕緣耐壓 | 4000 V |
| 防護等級 | IP00 |
| 工作溫度 | -40-80 oC |
| 產品重量 | 75 G |
| 產品認證 | UL,CE,CSA,VDE |
